Product Specifications
| System | CPU | Octa-core 2.0GHz high-performance processor |
| Operating System | Android 12.0 GMS | |
| Memory | 64GB + 4GB (standard), 128GB + 6GB (optional) | |
| SIM | Two out of three SIM card slots, support dual SIM and dual standbyTwo out of three SIM card slots two cards can be held at the same time, Nano SIM card + Nano SIM card / Nano SIM card + TF card | |
| Expansion | Micro SD card (up to 256GB) | |
| Display | 6.21-inch, resolution 1520*720 pixels | |
| Touchscreen | Industrial capacitive screen, support wet-hand operation / glove mode / multi-touch | |
| Camera | 16MP rear camera + 0.3MP sub-camera, support auto-focus/PDAF, 5MP front camera | |
| Flashlight | 800mA flashlight | |
| Keys | 5 keys: side scan key×2, side power key ×1, side volume ± key ×2 | |
| Battery | 3.85V lithium battery, with 4500mAh, detachable3.85V lithium battery, with 4200mAh, detachable, built-in NFC; Execution standard: GB31241-2022 | |
| Audio | Built-in microphone | |
| Charging | Type-C charging and pin port charging, support fast charging of 18V | |
| Alerts | Vibration reminder / LED reminder / high power speaker / audio reminder | |
| Vibrating Motor | Built-in vibrating motor | |
| Fingerprint Recognition | Support back fingerprint recognition | |
| Sensors | G-sensor / Proximity sensor / Light sensor / Geomagnetic sensor / Gyroscope | |
| System(Optional) | PTT | Support one-button PTT calls |
| Scanning Engine | Barcode Type | It can scan one-dimensional / two-dimensional barcodes |
| Decode resolution | ≥3.3 mil | |
| Scan angles | Pitch: ±60°; Skew: ±45°; Tilt: 360° | |
| Field of view(FOV) | H: 44.3°； V: 28.4°； D: 51° | |
| Motion Tolerance | 8m/s | |
| Communications | WWAN (Network bands) | China & Eurasian version:2G: B2/B3/B5/B83G: WCDMA B1/B5/B8, CDMA & EVDO: BC0, TD-SCDMA B34/B394G: FDD-LTE: B1/B3/B5/B7/B8/B20, TDD-LTE: B34/B38/B39/B40/B41American version:2G: B2/B3/B53G: B1/B2/B4/B5, CDMA & EVDO: BC0/BC1 (U.S.)4G: B1/B2/B3/B4/B5/B7/B8/B17/B28A/B28B/B41 |
| WWAN (Data Service) | GSM/GPRS/EDGE/UMTS/HSPA/HSPA+/EV/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE | |
| WLAN | Wi-Fi 802.11a/b/g/n/ac/ax (2.4G + 5G dual-band Wi-Fi), support fast roaming, 5G PA amplifier | |
| Bluetooth | Bluetooth 5.0, BLE | |
| GPS | GPS/AGPS/BDS/Galileo/GLONASS/QZSS | |
| NFC (Standard) | Frequency | 13.56 MHz |
| Reading Distance | Within 60 mm | |
| Protocols | ISO14443A/14443B/15693 | |
| Mechnical | Dimension (HWD) | 168mm×79mm×13.7mm |
| Weight | 288g (including the battery) | |
| Environmental | Opreating Temperature | -20℃ - 55℃"Do not charge under low temperature conditions" |
| Storage Temperature | -40℃ - 70℃ (without the battery) | |
| Humidity | 0 - 95% (no moisture condensation) | |
| Drop rating | Multiple drops to concrete floor from the height of 1.5m | |
| Tumble test | 1000 times of roller drops from a height of 0.5 meter | |
| Ingress Protection | IP67 | |
| ESD Protection | ±15KV (air discharge), ±8KV (contact discharge) | |
| Interfaces | USB | Type-C (with headset function)*1 |
| OTG | Support | |
| Development | Programming Language | Java |
| APIs | iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kit), Android Standard Interface | |
| Tools | Eclipse/Android Studio | |
| Accessories | Standard Accessories | USB cable1, power adapter1, device-back strap1, battery1 |
| Optional Accessories | Power adapter (fast charging), 2-in-1 charging cradle, multifunctional 5-slot base, single charging cradle, bottom charger, 4-slot charging cradle, 4-slot battery charging cradle, fanny pack, protective film, hand strap*1 |
Power Adapter
Standard power adapter, 100-240V wide voltage input, 5V2A output, supports CN/EU/UK/US/AU plugs, compatible with CHA-USBC-CNR accessories
Note: Regional specifications of the power adapter are optional
USB Data Cable
Type-C to USB-A data cable, 1 meter in length, supports charging and data transfer.

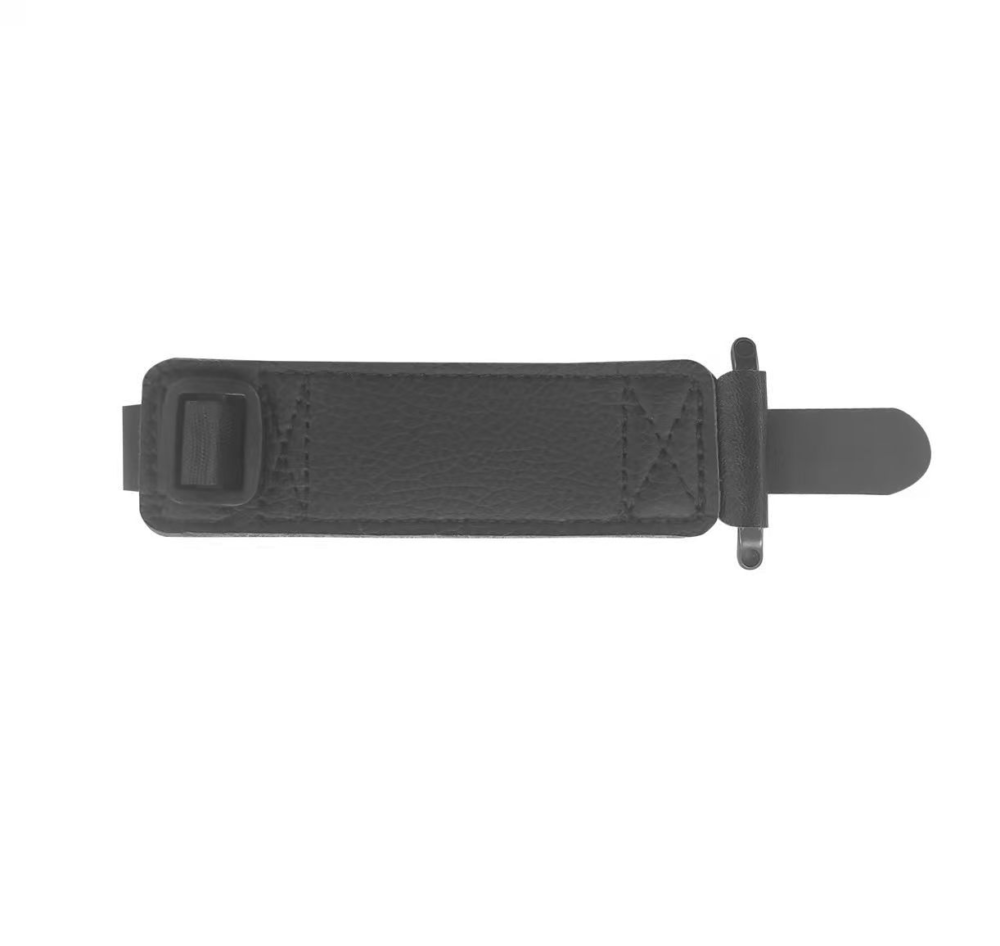

Shoulder Strap
Installed on the back of the main unit, it enables a comfortable grip, enhances stability during handling, and prevents the device from slipping out of your hand.

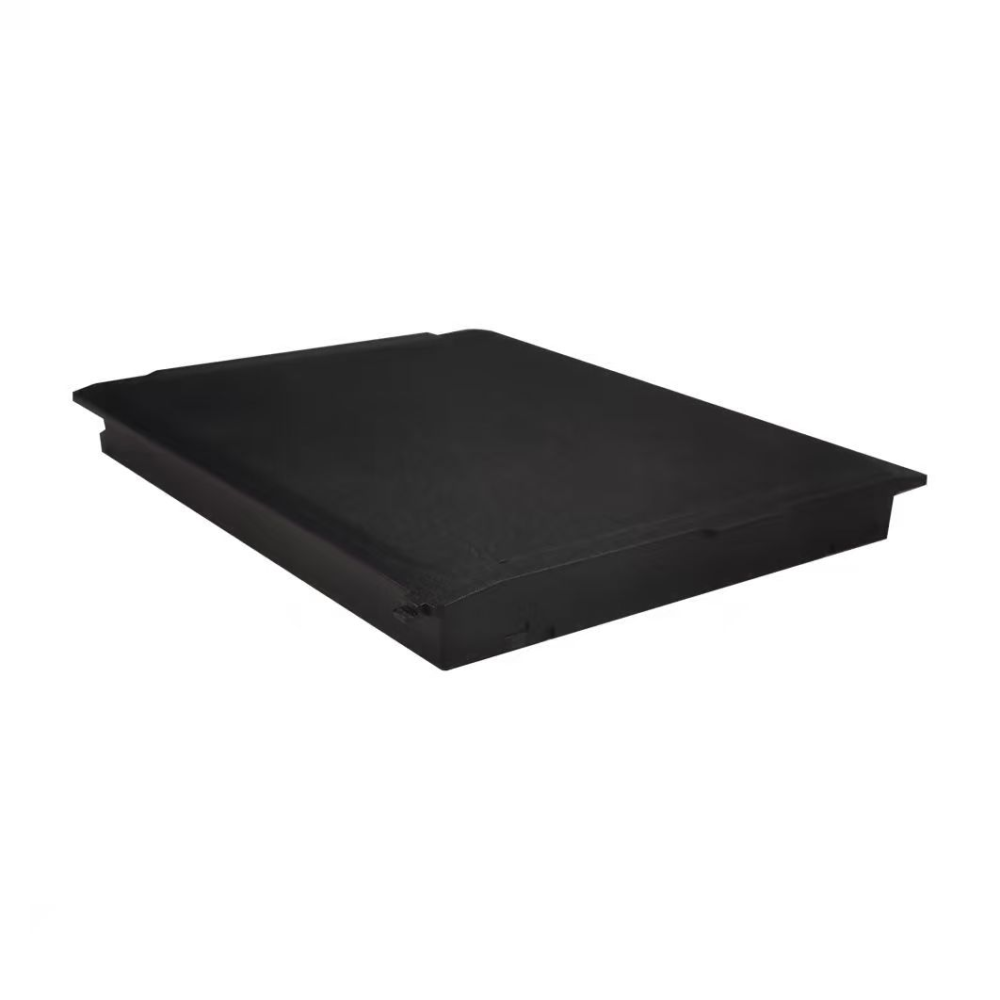

Battery
4500mAh, detachable design, support NFC 4200mAh, detachable design, support NFC
Note: every product comes with 1 unit, you can purchase extra unit
